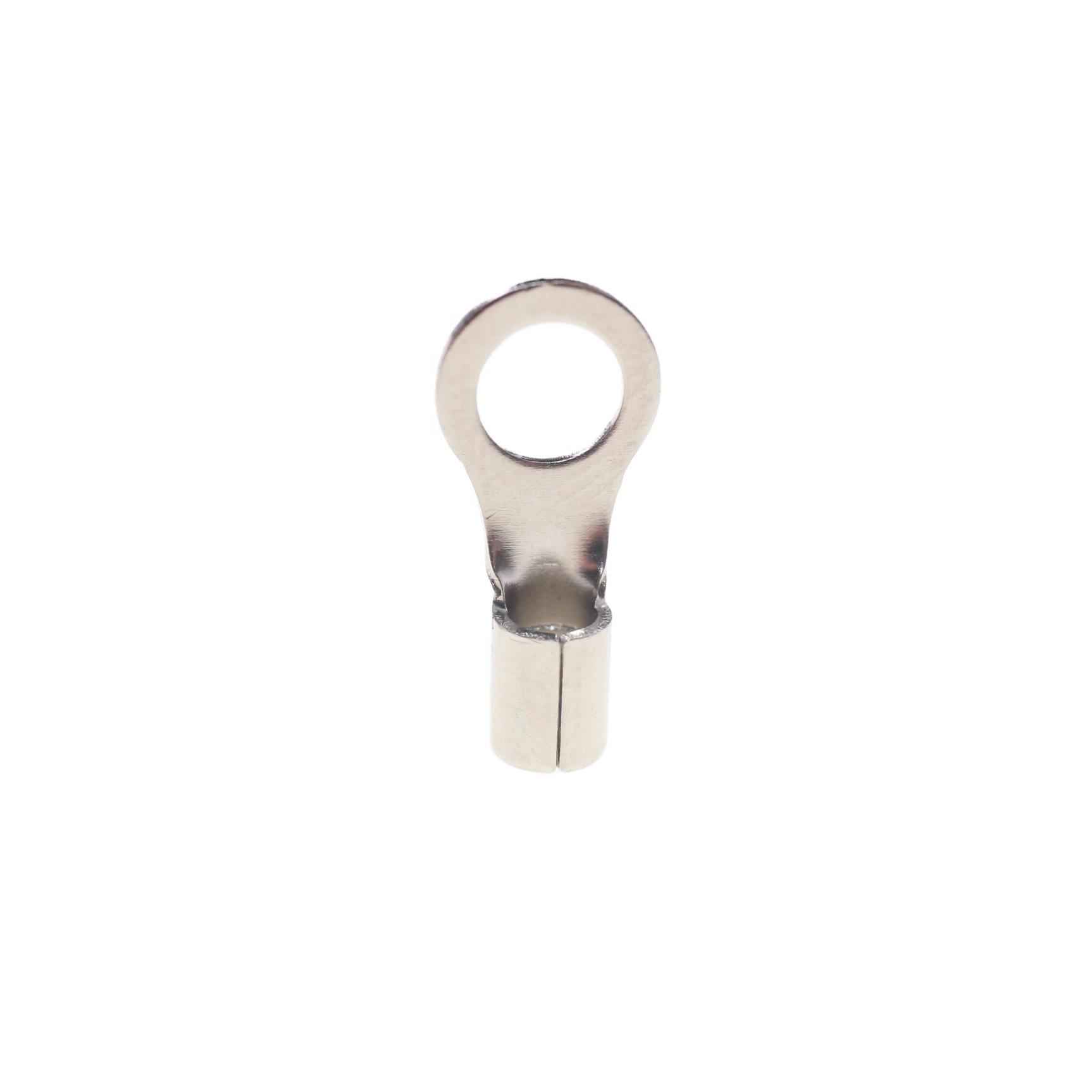

Non Insulated Copper Brass Ring Bare Naked Cable Lug Wire Crimp Connector Terminal
| Item No: | TO Non-insulated Ring Terminals |
| Product name: | TO Cold pressed terminal |
| Color: | Tinned copper |
| Material: | Brass or Copper |
| Application: | Wire and cable connection |
| Product Type | Terminals |
Wire range: 6-10㎜², A.W.G:8, Imax=62A
| Item No. | Stud size | Dimension (mm) |
| d2 | B | L | F | E | D∅ | d∅ |
| RNB8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 |
| RNBM8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 |
| RNBL8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 |
| RNBS8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 |
| RNBL8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 |
| RNB8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 |
| RNB8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 |
| RNB8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15.0 |
Wire range: 10-16㎜², A.W.G:6, Imax=88A
| Item No. | Stud size | Dimension (mm) |
| d2 | B | L | F | E | D∅ | d∅ |
| RNB14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 5.8 |
| RNB14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 |
| RNBS14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 |
| RNBL14-6 | 1/4 | 6.4 | 16.0 | 32.8 | 13.3 |
| RNB14-8 | 5/16 | 8.4 | 16.0 | 32.8 | 14.5 |
| RNB14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.5 |
| RNB14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 |
Wire range: 16-25㎜², A.W.G:4, Imax=115A
| Item No. | Stud size | Dimension (mm) |
| d2 | B | L | F | E | D∅ | d∅ |
| RNBS22-5 | #10 | 5.3 | 12.2 | 33.2 | 14.5 | 12.0 | 11.5 | 7.7 |
| RNBL22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 |
| RNBS22-6 | 1/4 | 6.4 | 12.2 | 33.2 | 14.5 |
| RNBL22-6 | 1/4 | 6.4 | 16.5 | 33.7 | 13.5 |
| RNB22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 |
| RNB22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 |
| RNB22-11 | 7/16 | 11.5 | 22.0 | 42.5 | 19.5 |
| RNB22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 |
Wire range: 25-35㎜², A.W.G:2, Imax=160A
| Item No. | Stud size | Dimension (mm) |
| d2 | B | L | F | E | D∅ | d∅ |
| RNB38-5 | #10 | 5.3 | 15.3 | 39.0 | 18.3 | 14.0 | 13.3 | 9.4 |
| RNB38-6 | 1/4 | 6.4 | 15.3 | 39.0 | 18.3 |
| RNBS38-8 | 5/16 | 8.4 | 15.3 | 39.0 | 18.3 |
| RNBL38-8 | 5/16 | 8.4 | 22.0 | 42.7 | 17.7 |
| RNBS38-10 | 3/8 | 10.5 | 15.3 | 39.0 | 18.3 |
| RNBL38-10 | 3/8 | 10.5 | 22.0 | 42.7 | 17.7 |
| RNB38-11 | 7/16 | 11.5 | 22.0 | 42.7 | 17.7 |
| RNB38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 |
FAQ:
1. Are you factory or trading company?
Yes,we are manufacturer in Wenzhou,China. We can give you the competitive price & after sale service.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity
4. Can you provide samples? Are the samples free?
Yes, samples can be provided with freight charge to be collect.
5. Could you change the size for customer?
Yes, the sizes can be customized, for more details, please contact us freely.
6. How about the after-sale service?
Any comments are welcomed,we will solve your application problems.
